Innolux 23.6inch Desktop lcd display model M236HJJ-L31 laptop lcd monitor 1920x1080Pixels 93PPI 30PIN
Innolux Corporation (hereafter called Innolux) M236HJJ-L31 is a 23.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Matte , TCO 6.0 Compliance. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q3, 2014, Now this model is discontinued. We inputted this model's specification on Oct 23 2014 for the first time, and the latest update on Aug 31 2023. If you want to embed M236HJJ-L31 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The M236HJJ-L31 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:Innolux
Model P/N: M236HJJ-L31
Diagonal Size: 23.6"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 93PPI
Pixel Format: RGB Vertical Stripe
Active Area:521.28(W)×293.22(H) mm
Bezel Opening:525.22(W)×297.22(H) mm
Outline Size :544.8(W)×320.5(H) ×11.5(D) mm
Surface Antiglare (Haze 25%), Hard coating (3H)
Brightness :250 cd/m² (Typ.)
Contrast Ratio :3000:1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode :MVA, Normally Black, Transmissive
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry
Response Time 20 (Typ.)(G to G)
Display Colors 16.7M 72% NTSC
Lamp Type 4 strings WLED , 40K hours , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touch Screen Without
Panel Weight: 2.31±0.11Kgs
Application :Desktop Monitor
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage :5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;
Storage Temp.: -20 ~ 60 °C
Product Tags:
|
|

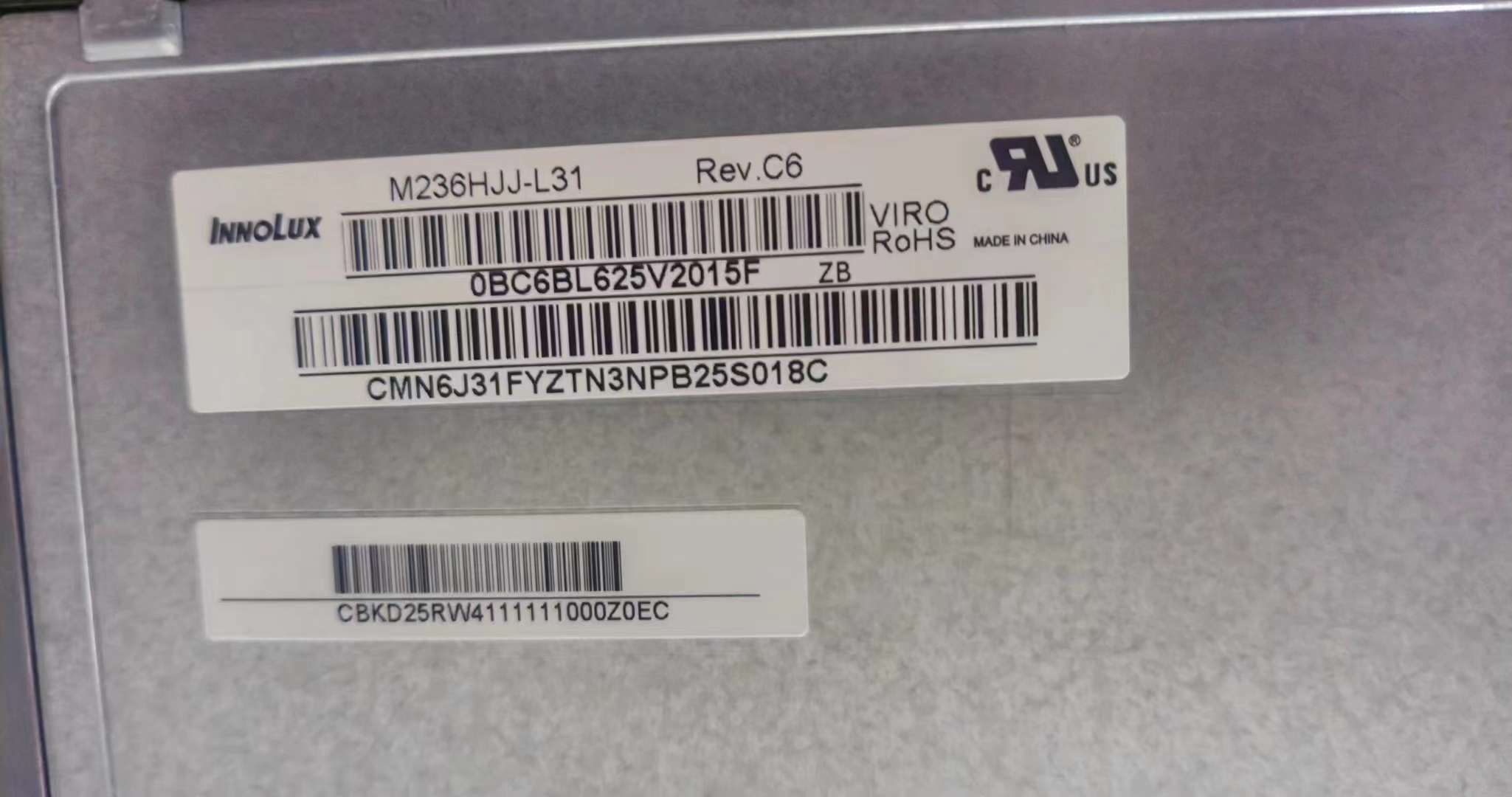

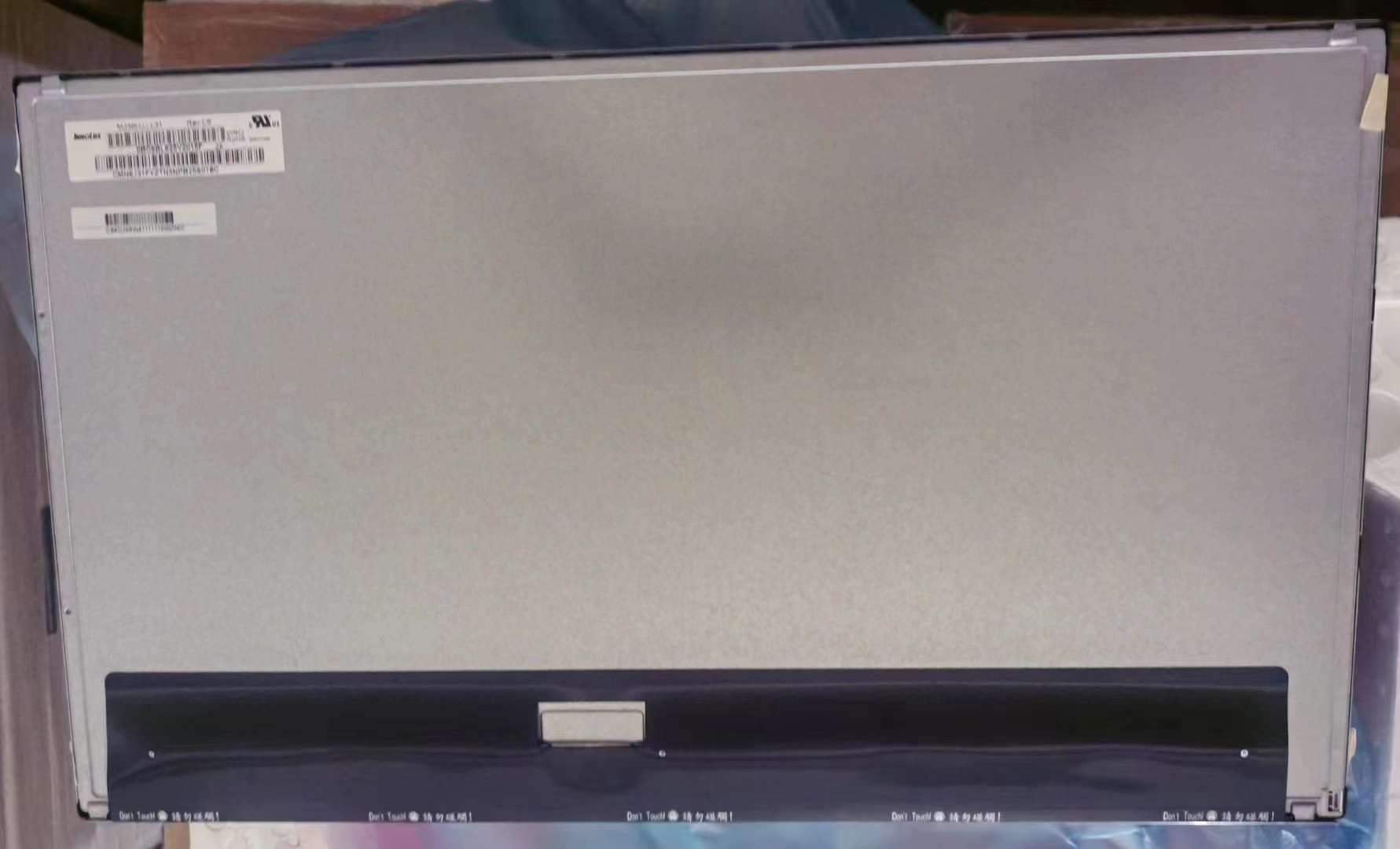

Innolux 23.6inch Desktop lcd display M236HJJ-L31 laptop lcd monitor 1920x1080Pixels 93PPI 30PIN Images
|
