BOE 19inch Digital Signage LCD Display stretched lcd model DV190FBM-NB0 30Pin 102PPIMonitor 1920*360pixels 5.0V
BOE Technology Group Co., Ltd. (hereafter called BOE) DV190FBM-NB0 is a 19.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Life ≥ 50K hours, Bar Display, Reverse I/F, Matte , Energy Star 6.0 Compliance. Based on its features, einklcd recommend that this model be applied to Digital Signage, Stretched Bar LCD etc. According to the information stored in einklcd this model mass production on Q4, 2016, Now this model is in production. TWe inputted this model's specification on Dec 7 2017 for the first time, and the latest update on Apr 12 2024. If you want to embed DV190FBM-NB0 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail.
The DV190FBM-NB0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: BOE
Model P/N: DV190FBM-NB0
Diagonal Size:19.1" (1/3 cut of 21.5")
Panel Type:a-Si TFT-LCD, LCM
Resolution1920(RGB)×360 102PPI Pixel
Format :RGB Vertical Stripe
Active Area 476.64(W)×89.37(H) mm
Bezel Opening 479.5(W)×109.4(H) mm
Outline Dim. 491.5(H)×109.4(V) ×13.3(D) mm
Treatment Antiglare (Haze 25%)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
View Direction Symmetry
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Operating Mode ADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Support Color 16.7M 72% NTSC
Light Source :WLED , 50K hours , W/O Driver
Weight 780g (Typ.)
Designed For :Digital Signage Stretched Bar LCD
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel: Without
Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply :5.0V (Typ.)
Environment Operating Temperature: 0 ~ 60 °C ;
Storage Temperature: -20 ~ 60 °C
|
|

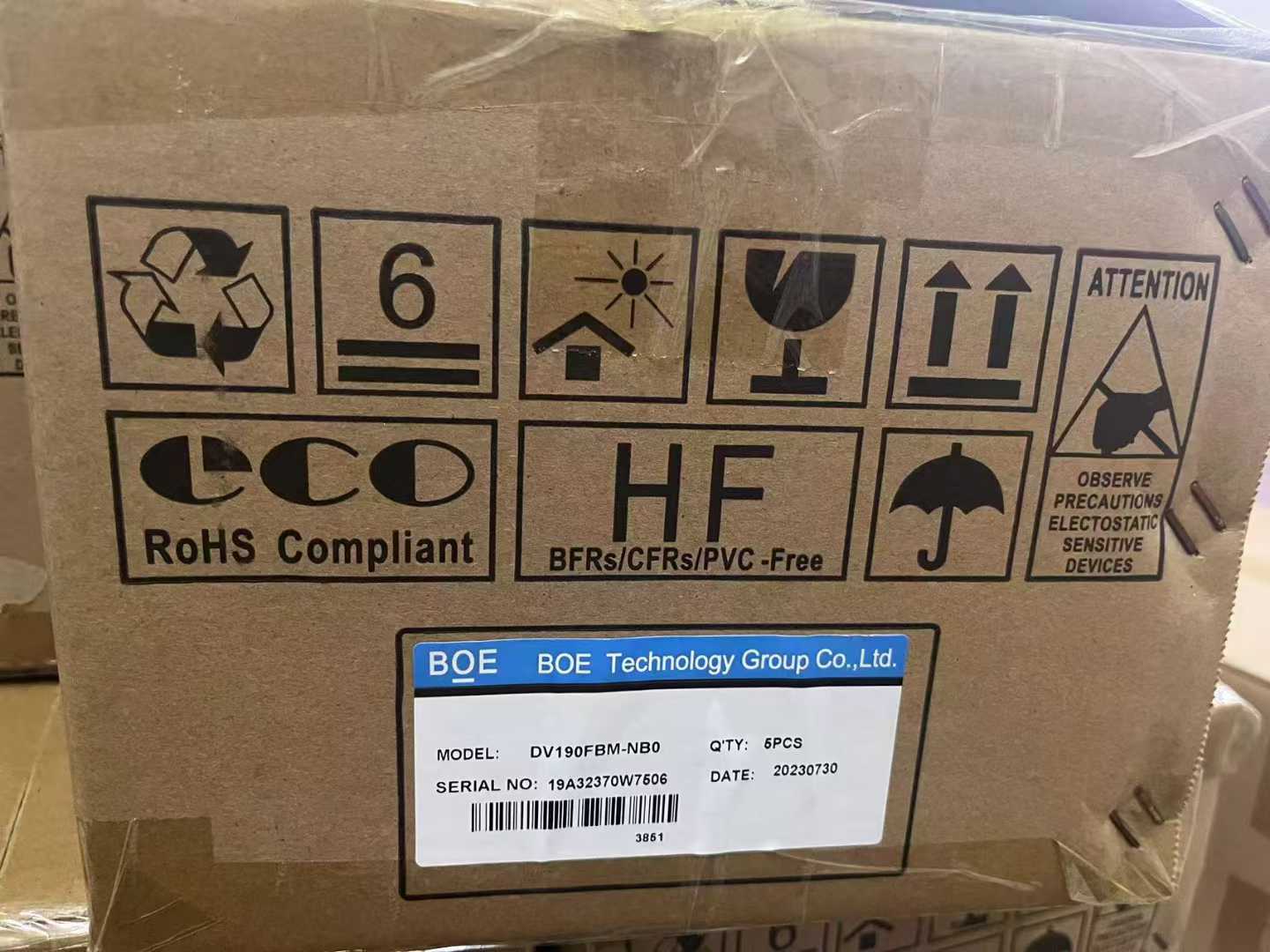

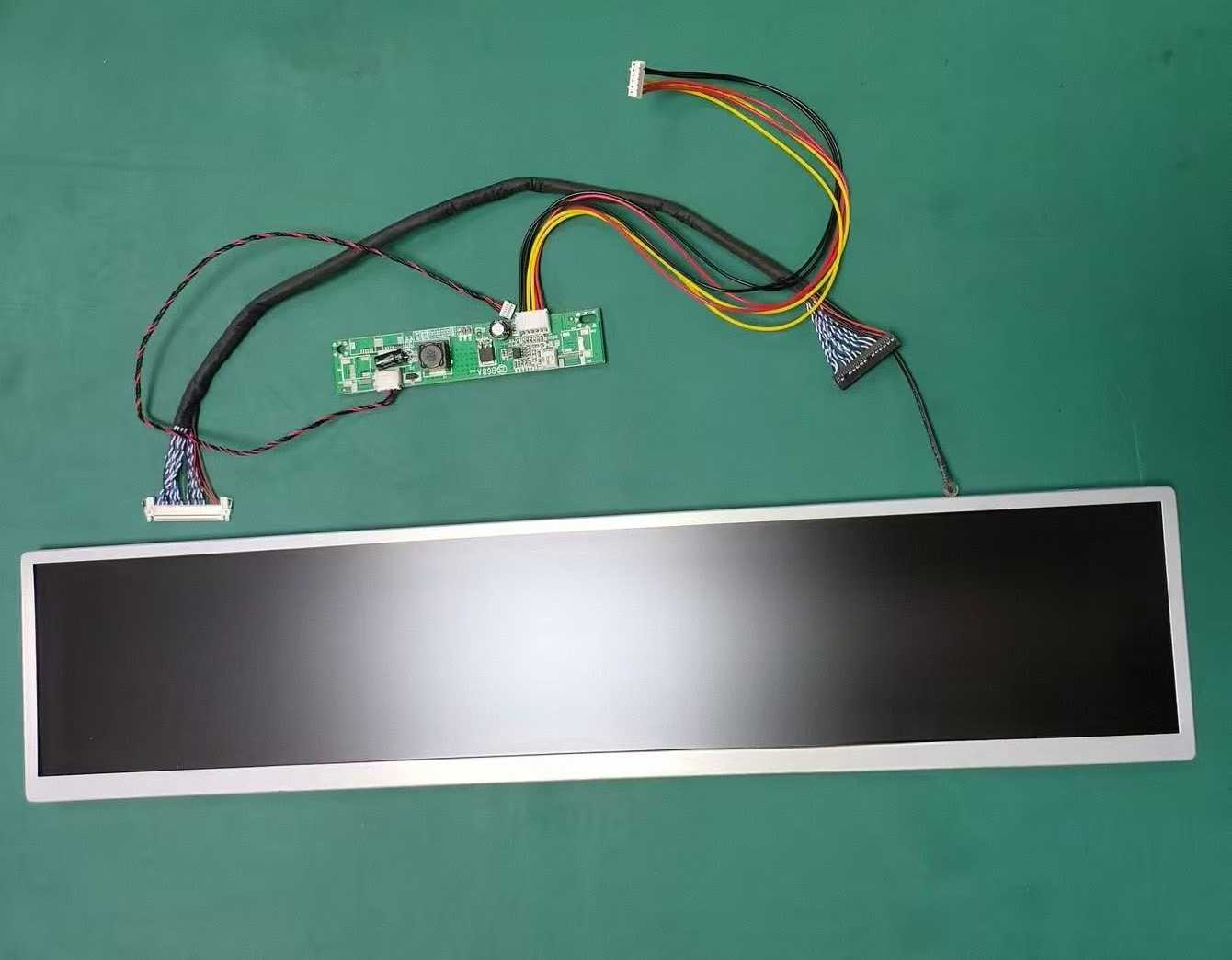

BOE 19inch Digital Signage LCD Display stretched lcd model DV190FBM-NB0 30Pin 102PPIMonitor 1920*360pixels 5.0V Images
|
