BOE 23.6inch Digital signage LCD Display DV236FBM-N00 30Pin Monitor 1280*1280pixels Outdoor Brightness lcd 12V
The DV236FBM-N00 is a 23.6 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Circular Display, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Digital Signage, Outdoor High Brightness, Round Display etc. According to the information stored in einklcd this model mass production on Q2, 2022, Now this model is in production. We inputted this model's specification on May 16 2022 for the first time, and the latest update on Sep 8 2023. If you want to embed DV236FBM-N00 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The DV236FBM-N00 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: BOE
Model P/N:DV236FBM-N00
Diagonal Size 23.6"
Panel Type:a-Si TFT-LCD, LCM
Resolution1280(RGB)×1280 54PPI Pixel
Format :RGB Vertical Stripe
Active Area 599.424(W)×599.424(H) mm
Bezel Opening 603.42(W)×603.42(H) mm
Outline(mm):657(W)×657(H)×29.15(D)
Luminance:1500 (Typ.)(cd/m²)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Good View at Symmetry
Color Depth 16.7M 72% NTSC
Mass
Refresh Rate:60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Treatment
Contrast Ratio:1000 : 1 (Typ.) (TM)
Work Mode
Response
Backlight :WLED , 50K hours , With LED Driver
Used for:Digital Signage Outdoor High Brightness Round Display
Touchscreen:Without
Antiglare (Haze 25%) :Signal Type LVDS (2 ch, 8-bit) , 30 pins Connector
ADS, Normally Black, Transmissive [Panelook copyright, copy is strictly prohibited]
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
14 (Typ.)(G to G) ms
Voltage Supply 12V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
Product Tags:
|
|

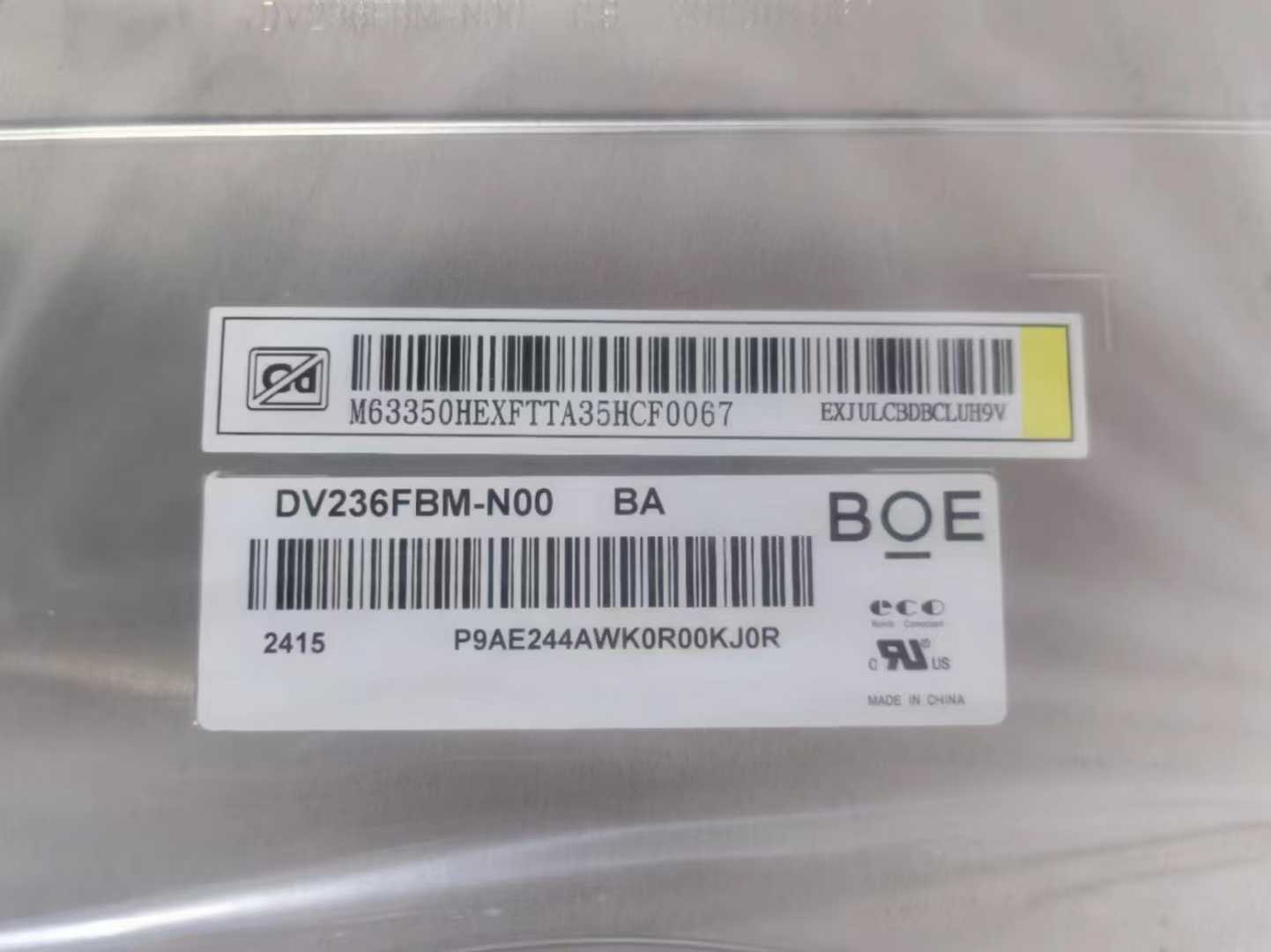

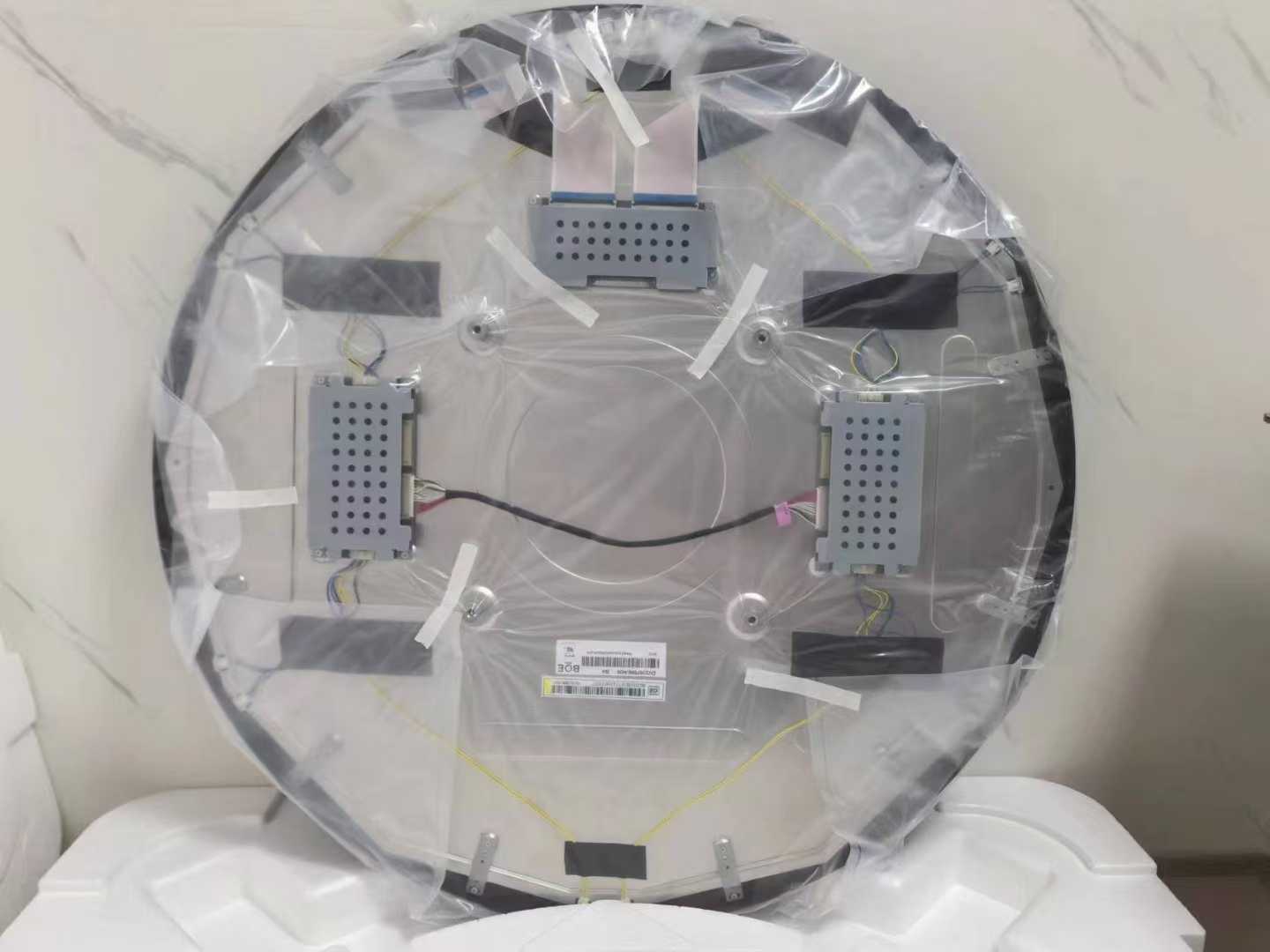

BOE 23.6inch Digital Signage LCD Display DV236FBM-N00 30Pin Monitor 1280*1280pixels 12V Images
|
